Description
Descriptions:

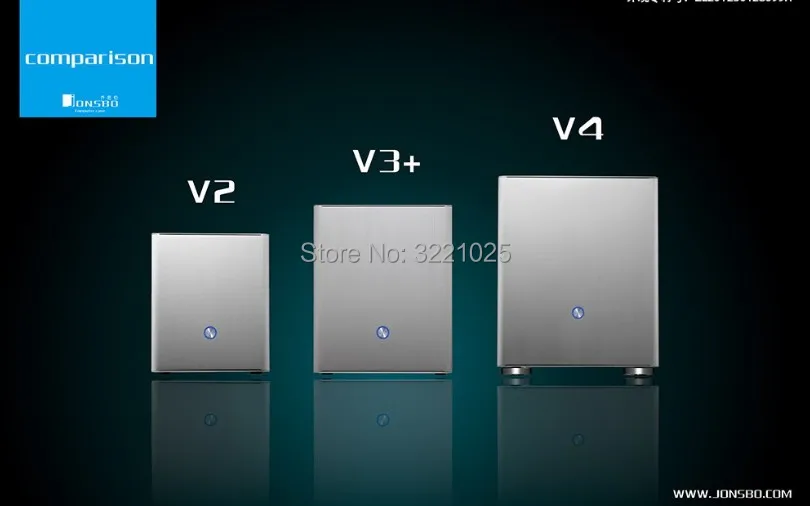

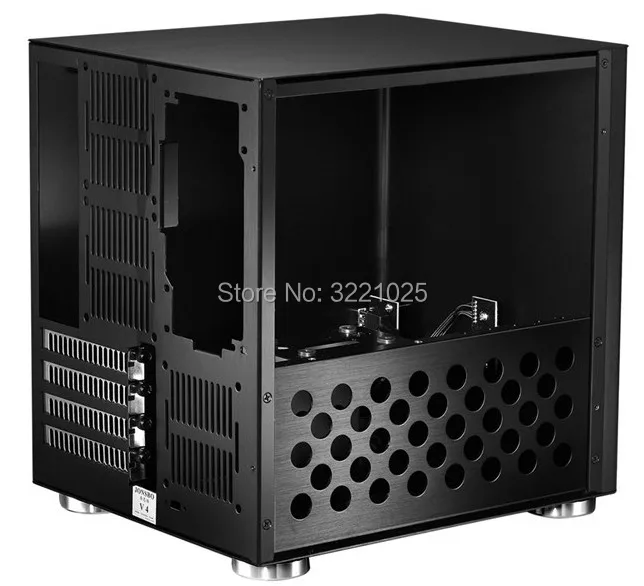

V4 continues V3+’s appearance design, but from the structural strength to expand the space for the comprehensive upgrading. V4 is the biggest advantage in retaining full aluminium wire anode, in order the price of refined products rare can support full size M-ATX motherboard. The box is made of aluminum magnesium alloy material 1.5MM, outer surface by anode wire drawing process, the product elegant metal texture. Panel, roof, the USB interface also do not see any of the screw. The top position of the reinforcement design, the hard disk bracket also has a reinforcing effect, double up on the strength, lower cover position had very big improvement. 3 8CM fans who support also provides adequate protection for the whole body heat, the length of the 260MM card support, also make users no longer have a fever to choose graphics and distress.
Characteristic.

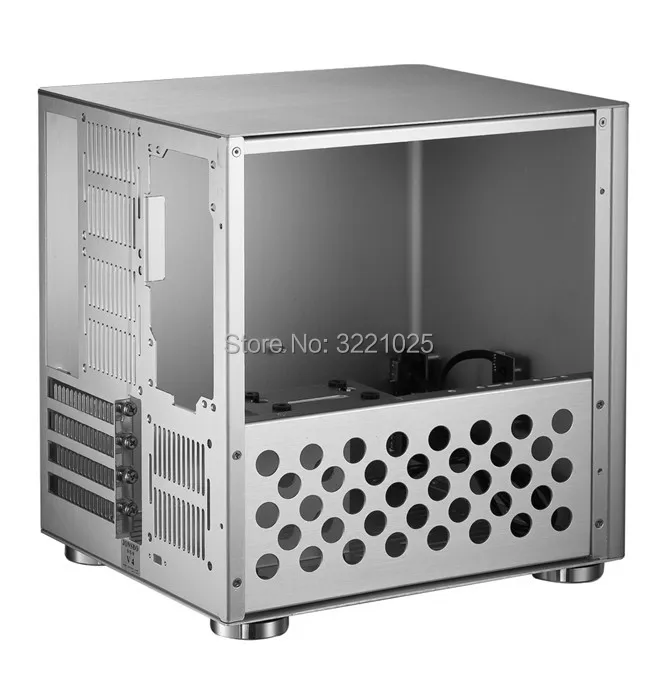

1)Simple aesthetic design the continuation of V3+, the whole body is made of aluminum magnesium alloy material 1.5MM, outer surface by anode wire drawing process, the product elegant metal texture.

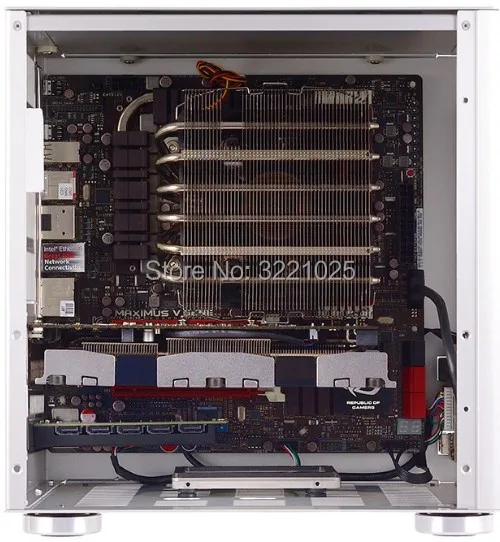

2 ) support the full size MATX motherboard, 260MM support the long card and height within 120MM CPU radiator, and supports up to 3 3.5 inch hard disk.
3 ) Hardware structure design strong, under the double reinforcement structure design, the structure of the product is unusually strong.
4 ) the internal hardware part and the surface of the product, the anode processing, with texture and avoid long time product produce oxidation.

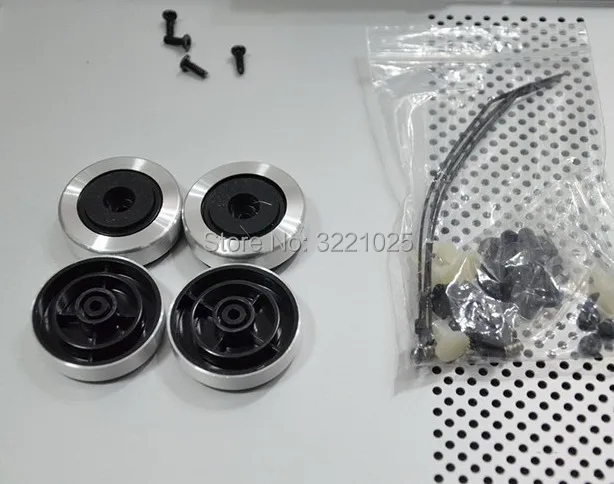

5 ) the case with a group of 4 stamping drawing pad.

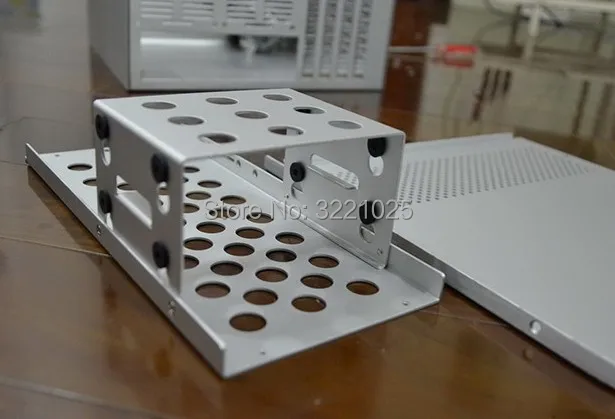

6 ) the hard disk location using design damping rubber pad, to protect the hard disk and reduce the resonance.
7 ) rear window reserved 3 8CM fan, cooling channels provide sufficient for box.

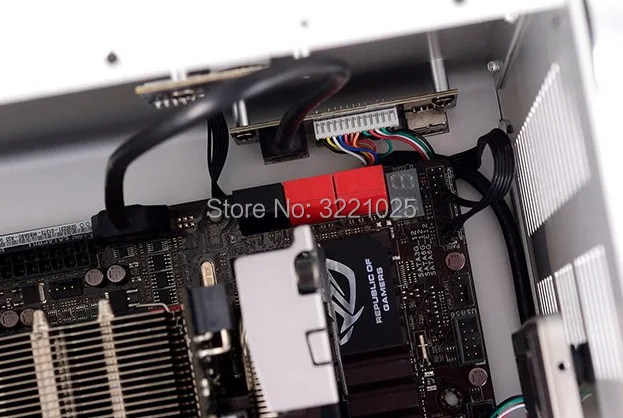

8 ) USB3.0+USB2.0 package interface integrated profile settings, 100M/S transmission rate, HD and COPY of large files to meet user needs, also can consider some old motherboards without USB3.0 interface.
9 ) All wire chassis by blackening process of popular, resulting in visually more visual impact.
Basic parameters:

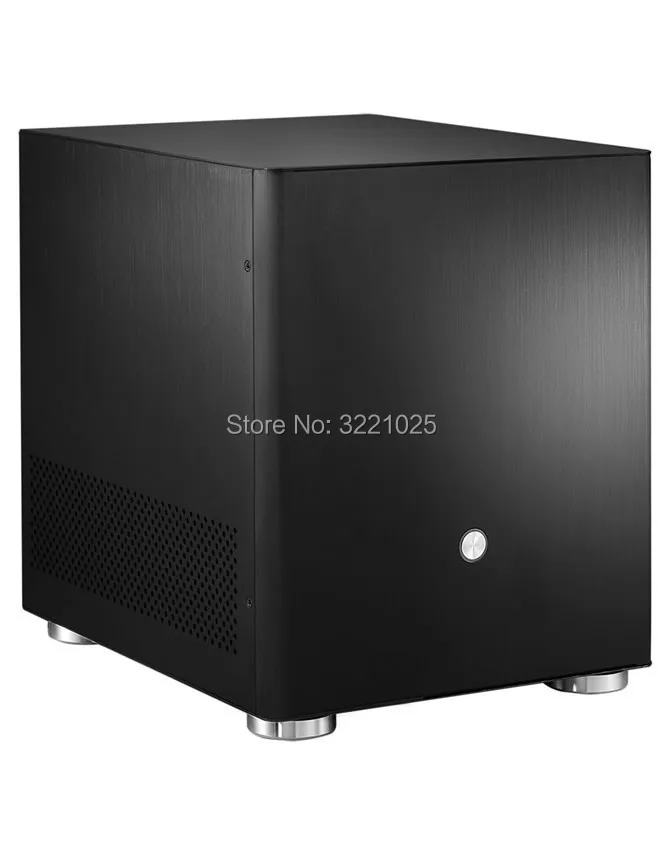

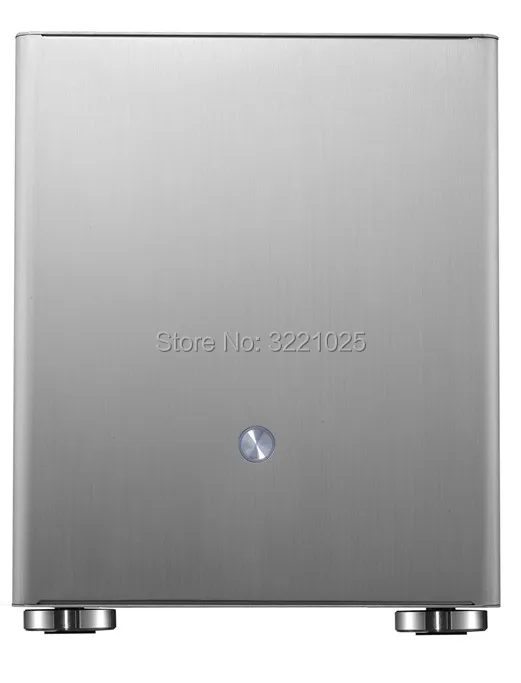

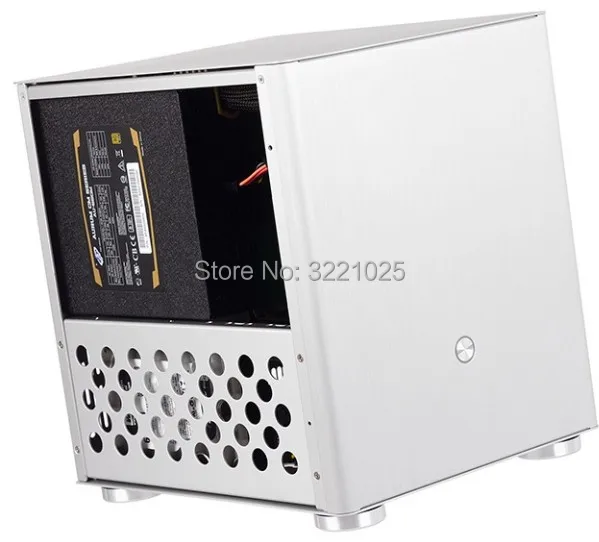

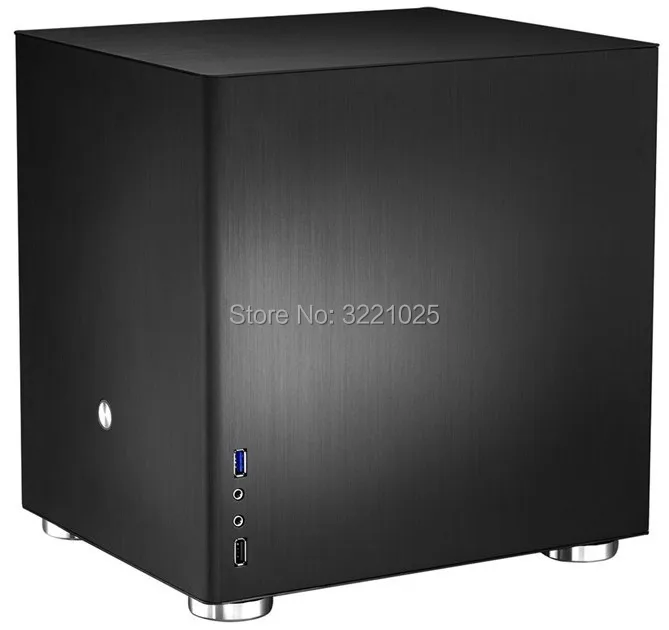

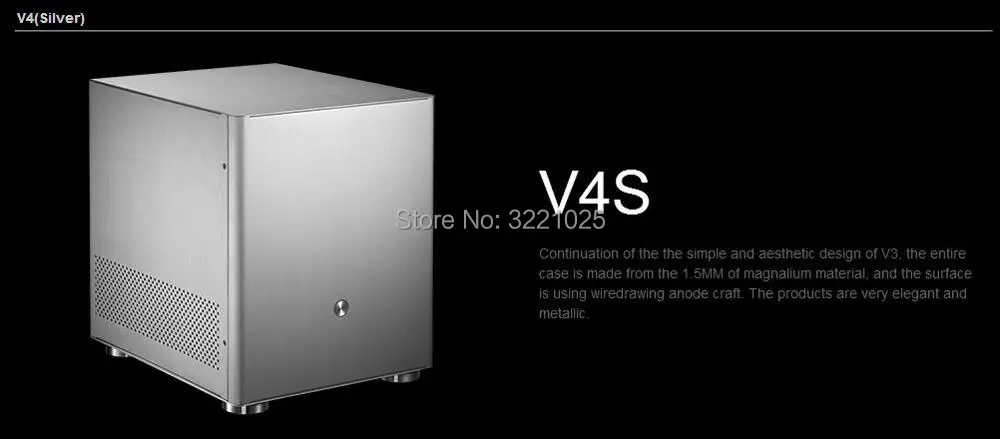

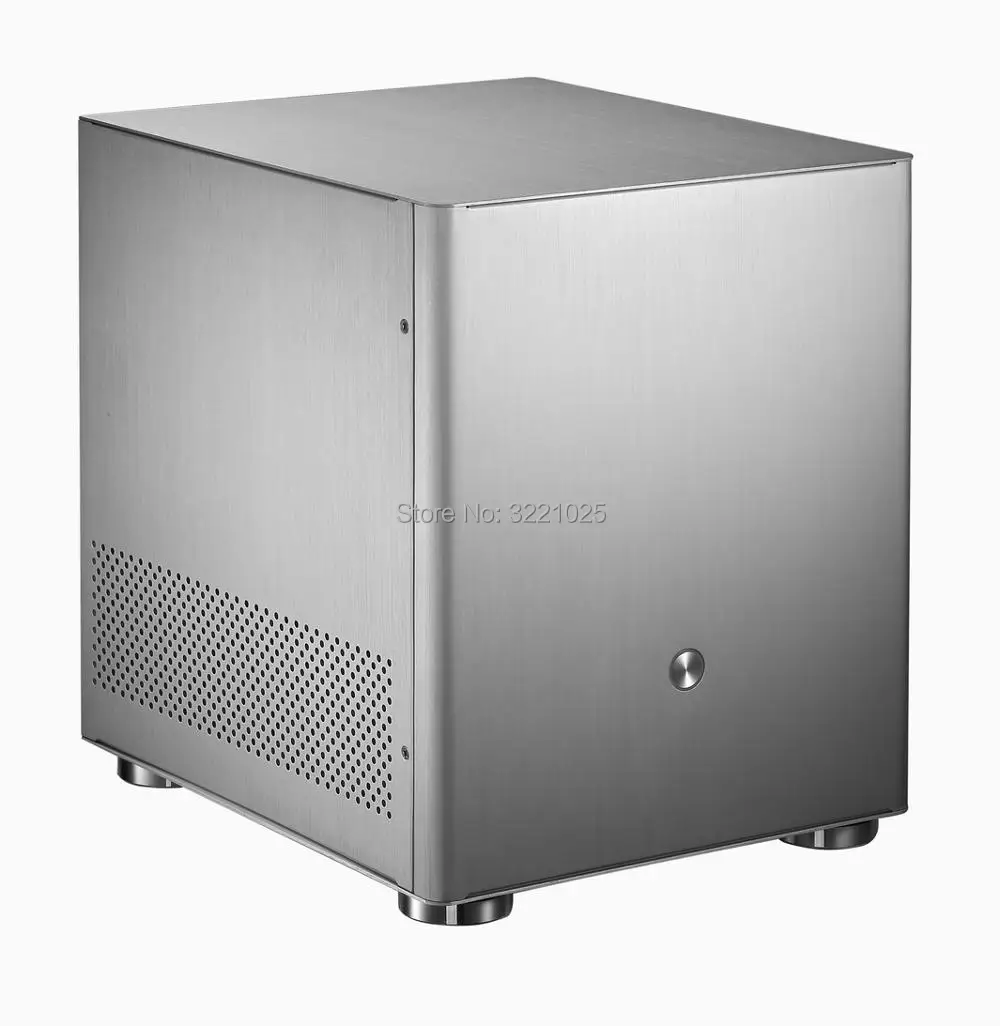

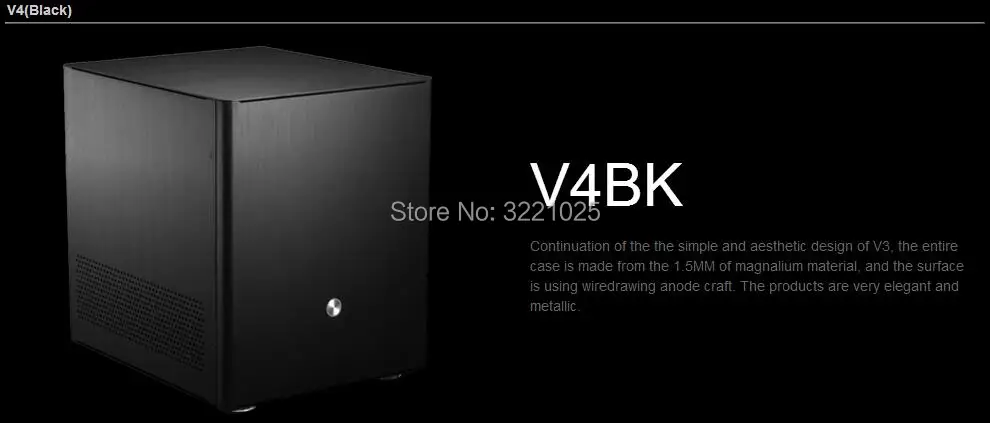

Product type:V4S (Silver) / V4B (Black)
Color: Silver / Black
Product size: 238mm (W) x 278 mm (H) x 280 mm (D)
Motherboard support type: M-ATX (245mm*245mm), ITX (170mm*170mm)

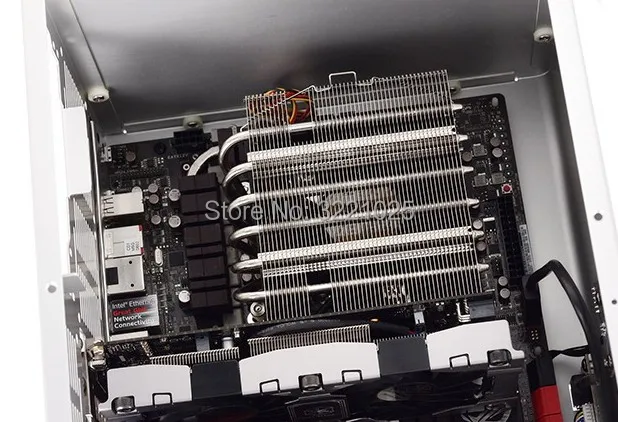

CPU radiator support height: 120MM

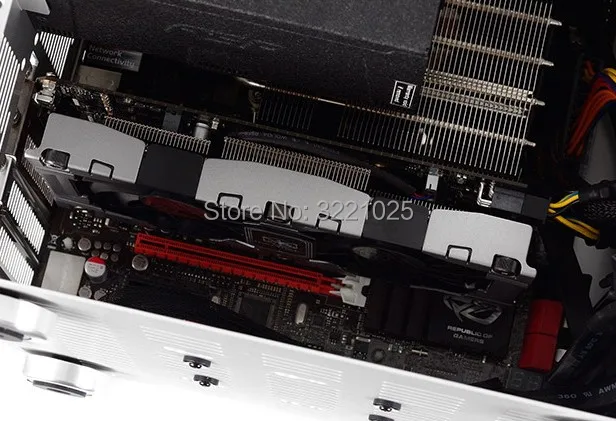

Graphics Card support length: 260MM
Metal material: aluminum alloy 1.5MM
Bezel material: aluminum alloy 1.5MM
Driver: 2pcs x 3.5, 1pcs x 2.5 or 3pcs x 2.5

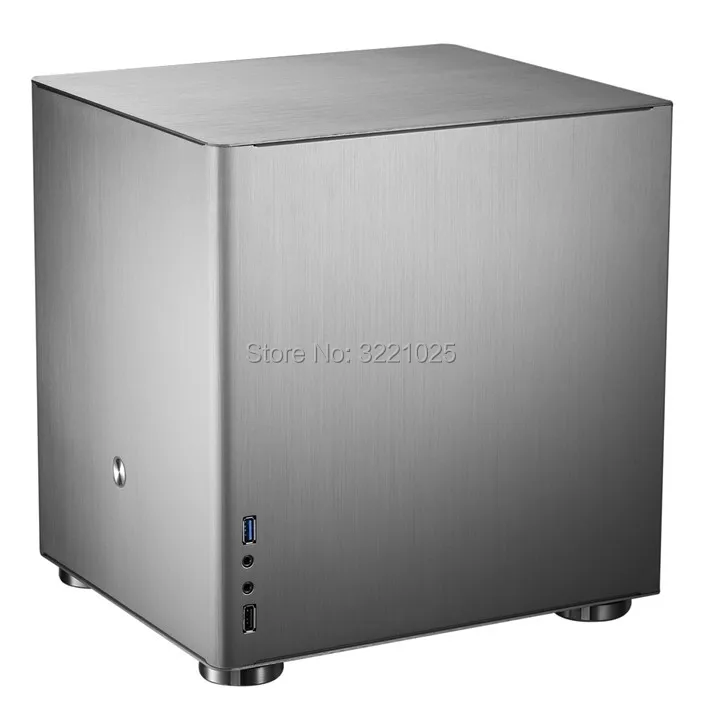

The front interface: USB3.0 * 1, USB2.0 * 1, microphones* 1, headphones * 1
Cooling system: 8CM * 3 (optional)

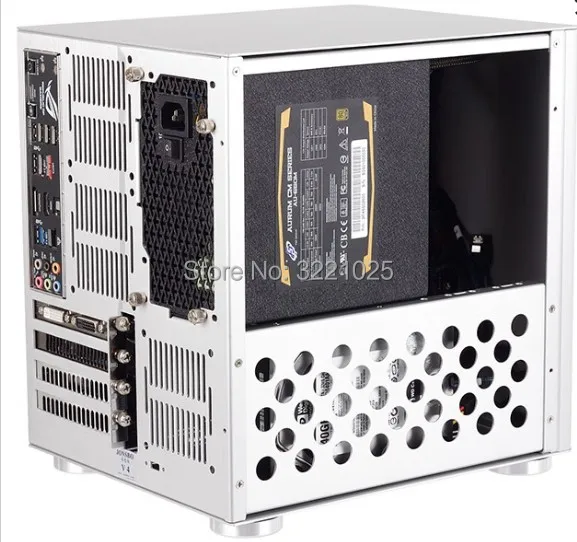

Expansion slots(PCI Slot): 4 pcs

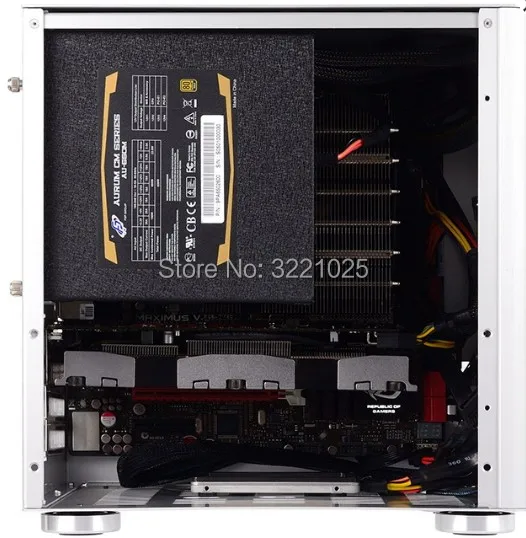

Power supply: PSII power supply (Standard ATX high power, optional)
Weight: net weight: 2.0KG, weight: 2.6KG
