Description
- This motherboard is used, about 90% new
- 100% tested it is working well before shipping
- Packing: motherboard with I/O shield backplate and SATA cable.
P8H61-M LX parameters
Main Chipset: Intel H61
Audio chip: Integrated Realtek ALC887 8 channel
Memory Type: 2timesDDR3 DIMMs
Maximum memory capacity: 16GB
Motherboard plate type: uATX plate type
Dimensions: 24.4 x 19.3cm
Power socket: a 4-pin, a 24-pin power connector.
Power mode: six phases
Motherboard chip
Integrated Chip Sound Card/Network Card
Main Chipset Intel H61
Chipset description Using Intel H61 chipset
Display chip CPU built-in display chip (requires CPU support)
The audio chip integrates Realtek ALC887 8-channel audio chip
NIC chip Onboard Realtek RTL8111E Gigabit Ethernet
Processor specification
CPU Type Core i7/Core i5/Core i3
CPU socket LGA 1155
CPU Description Supports Intel 22/32nm processor
Memory specifications
Memory Type 2timesDDR3 DIMMs
Maximum memory capacity 16GB
Memory Description Supports dual channel DDR3 1333/1066MHz memory
Storage expansion
PCI-E Standard PCI-E 2.0 Standard
PCI-E slot 1 x PCI-E X16 graphics card slot
3xPCI-E X1 slot
Storage Interface 4 x SATA II Interface

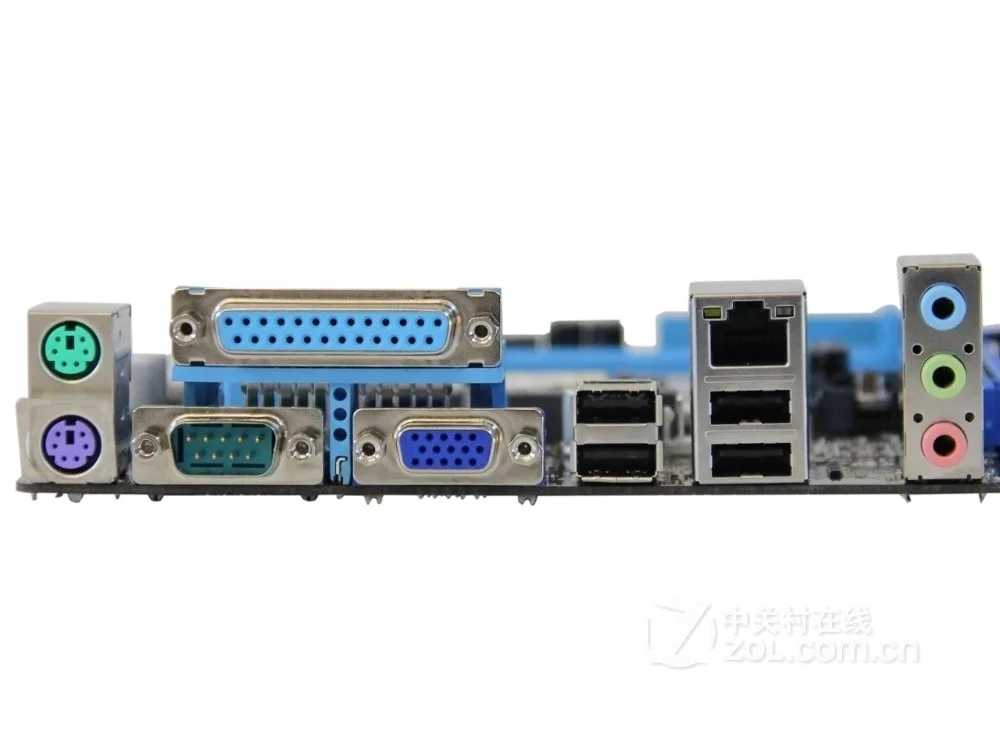

I/O interface
USB interface 10timesUSB2.0 interface (6 built-in +4 backplane)
Video interface 1timesVGA interface
Power Jack A 4-pin, 24-pin power connector
Other interfaces 1timesRJ45 network interface, audio interface, PS/2 mouse, PS/2 keyboard interface
Plate type
Mainboard type uATX board type
Dimensions 24.4times19.3cm
